【SLA銅系列二位二通電磁閥（常閉型）】-上海浦蝶閥門有限公司

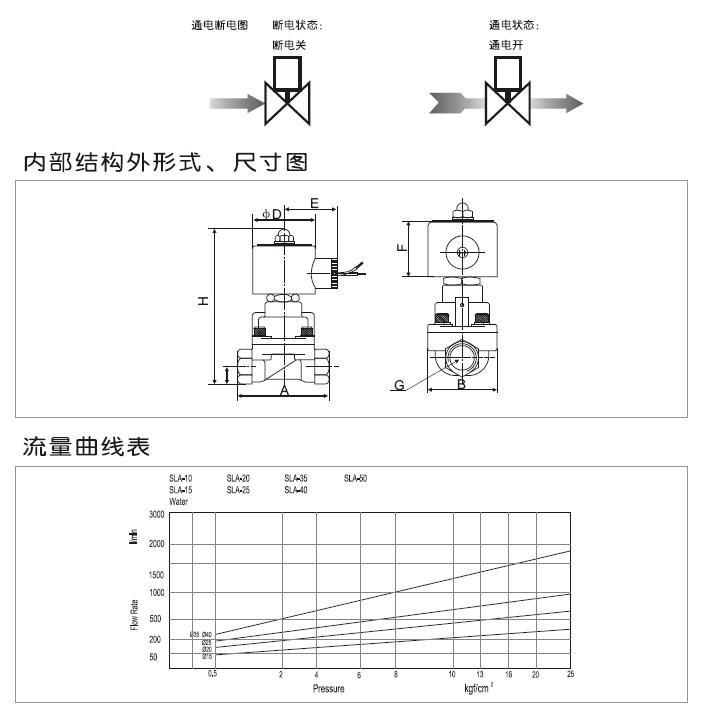

二位二通常閉型電磁閥,斷電關閉,通電打開
閥體材質為銅 最大耐壓力:40kgf/cm2 環境溫度:0℃～65℃（F級）、0℃～80℃（C級） 產品系列化生產,體積小,流量大,適用范圍廣 按閥上所標流向箭頭,最好線圈向上,水平安裝 電壓：AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V +10%到-10%允許波動 線圈可配德國原裝NASS線圈 常規備貨:AC220V/230V/240V 50/60HZ DC24V 密封件采用聚四氟乙烯材料（Teflon),以適用不同流體的開關控制
型號規格 接管
口徑 | 流量
通徑
mm | CV值 | 壓力差（Kgf/cm2)最大工作壓力 | 最大
流體
溫度 | 線圈
配置 | 功率 | 線圈
等級 | 外行尺寸
長×寬×高
A×B×H | 重量
KG | 訂貨型號
以下表中
電壓為
220VAC
50/60HZ | VA AC220V | W DC24V | 最小
壓力 | 空氣
瓦斯 | 水、熱水液體 | 輕油 | 蒸汽
AC/DC | | AC | DC | AC | DC | AC | DC | | 3/8” | 2.5 | 0.23 | 0 | 8 | 8 | 8 | 8 | 6 | 6 | 10 | 180 | D | 22 | 13 | H | 48×25×85.5 | 0.45 | SLA1SH02T1AC3 | | 2.5 | 0.23 | 0 | 13 | 13 | 13 | 13 | 7 | 7 | | 110 | D | 22 | 13 | F | 48×25×85.5 | 0.45 | SLA1DH02V1AC3 | | 2.5 | 0.23 | 0 | 13 | 13 | 13 | 13 | 5 | 5 | | 135 | D | 22 | 13 | H | 48×25×85.5 | 0.45 | SLA1DH02E1AC3 | | 2.5 | 0.23 | 0 | 13 | 13 | 13 | 13 | 7 | 7 | | 80 | D | 22 | 13 | F | 48×25×85.5 | 0.45 | SLA1DH02N1AC3 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 7 | 165 | D | 22 | 13 | H | 58×25×85.5 | 0.55 | SLA1SH02T1AC6 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | | 110 | D | 22 | 13 | F | 58×25×85.5 | 0.55 | SLA1DH02V1AC6 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | | 135 | D | 22 | 13 | H | 58×25×85.5 | 0.55 | SLA1DH02E1AC6 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 7 | 80 | D | 22 | 13 | F | 58×25×85.5 | 0.55 | SLA1DH02N1AC6 | | 1/4” | 2.5 | 0.23 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 10 | 180 | D | 22 | 13 | H | 48×25×85.5 | 0.4 | SLA1SH02T1BC3 | | 2.5 | 0.23 | 0 | 13 | 13 | 13 | 13 | 7 | 7 | | 110 | D | 22 | 13 | F | 48×25×85.5 | 0.4 | SLA1DH02V1BC3 | | 2.5 | 0.23 | 0 | 13 | 13 | 13 | 13 | 7 | 7 | | 135 | D | 22 | 13 | H | 48×25×85.5 | 0.4 | SLA1DH02E1BC3 | | 2.5 | 0.23 | 0 | 13 | 13 | 13 | 13 | 7 | 7 | | 80 | D | 22 | 13 | F | 48×25×85.5 | 0.4 | SLA1DH02N1BC3 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | 7 | 165 | D | 22 | 13 | H | 58×25×85.5 | 0.5 | SLA1SH02T1BC6 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | | 110 | D | 22 | 13 | F | 58×25×85.5 | 0.5 | SLA1DH02V1BC6 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | | 135 | D | 22 | 13 | H | 58×25×85.5 | 0.5 | SLA1DH02E1BC6 | | 4.5 | 0.6 | 0 | 7 | 4 | 7 | 4 | 4 | 4 | | 80 | D | 22 | 13 | F | 58×25×85.5 | 0.5 | SLA1DH02N1BC6 | | 3/8” | 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | | 110 | D | 33 | 32 | F | 75×52×129 | 1.25 | SLA1DH02T1C15 | | 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | W | 30 | 25 | H | 75×52×129 | 1.25 | SLA1WH02T1C15 | | 1/2” | 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | | 110 | D | 33 | 32 | F | 75×52×129 | 1.2 | SLA1DH02T1D15 | | 15 | 4.5 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | W | 30 | 25 | H | 75×52×129 | 1.2 | SLA1WH02T1D15 | | 3/4” | 20 | 9.0 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | | 110 | D | 33 | 32 | F | 85×60×141 | 1.5 | SLA1DH02T1E20 | | 20 | 9.0 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | W | 30 | 25 | H | 85×60×141 | 1.5 | SLA1WH02T1E20 | | 1” | 25 | 13 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | | 110 | D | 33 | 32 | F | 100×70×148 | 1.9 | SLA1DH02T1G25 | | 25 | 13 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | W | 30 | 25 | H | 100×70×148 | 1.9 | SLA1WH02T1G25 | | 11/4” | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | | 110 | D | 33 | 32 | F | 120×90×168 | 3.6 | SLA1DH02T1H35 | | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | W | 30 | 25 | H | 120×90×168 | 3.6 | SLA1WH02T1H35 | | 11/2” | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | | 110 | D | 33 | 32 | F | 120×90×168 | 3.5 | SLA1DH02T1J35 | | 35 | 26 | 0.5 | 25 | 20 | 25 | 20 | 20 | 20 | 10 | 185 | W | 30 | 25 | H | 120×90×168 | 3.5 | SLA1WH02T1J35 |
