【ZS銅系列二位二通大口徑直動式電磁閥（常閉型）】-上海浦蝶閥門有限公司
二位二通常閉型電磁閥,斷電關閉,通電打開;產品為系列化生產,體積小,流量大,適用范圍廣 閥體材質為:鍛銅,鑄銅(只限 32、40、50) 環境溫度:0℃～65℃ 介質溫度: 0℃～120℃ 安裝:按閥上所標流向箭頭,為增強使用壽命和可靠性,最好線圈向上,水平安裝 電壓:AC24V/110V/220V/230V/240V 50/60HZ DC24V/12V ±10%允許波動 16～25mm可選配德國NASS線圈 密封件:可采用NBR、VITON、EPDM等多種,以適用于不同流體的開關控制. 型號規格 接管口徑
流量通徑
mm | CV值 | 壓力差（Kgf/cm2) | 最大
流體

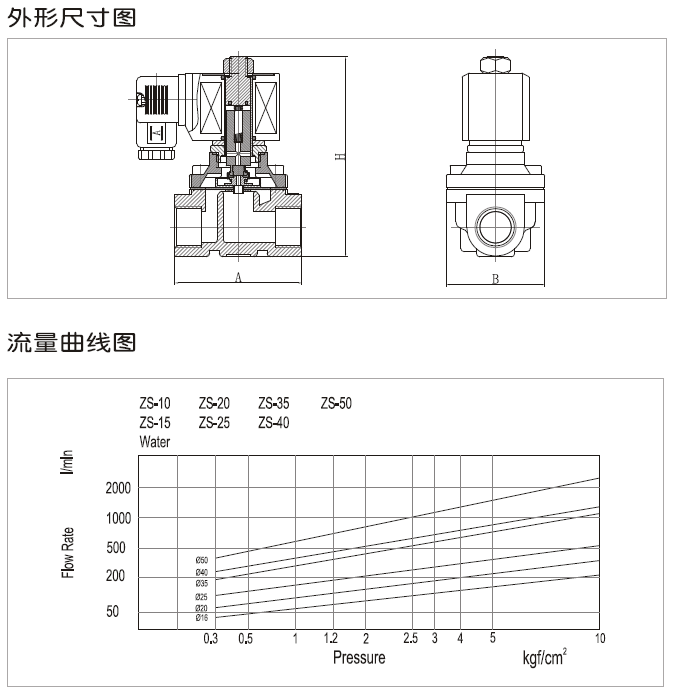

溫度 | 線圈 | 功率 | 外行尺寸 長×寬×高 A×B×H | 重量KG | 訂貨型號 以下表中電壓為 220VAC 50/60HZ | | 最小壓力 | 最大工作壓力 | | 空氣瓦斯 | 水、熱水液體 | 輕油≤20CST | F | VA | W | | AC | DC | AC | DC | AC | DC | 配置 | AC220V | DC24V | | 3/8” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02N1C16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02E1C16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02V1C16 | | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02G1C16 | | 1/2” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02N1D16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02E1D16 | | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02V1D16 | | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.9 | ZS1DF02G1D16 | | 3/4” | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 73×57×114 | 1.08 | ZS1DF02N1E20 | | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 73×57×114 | 1.08 | ZS1DF02E1E20 | | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 73×57×114 | 1.08 | ZS1DF02V1E20 | | 20 | 7.6 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 73×57×114 | 1.08 | ZS1DF02G1E20 | | 1” | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 99×77×121 | 1.4 | ZS1DF02N1G25 | | 25 | 12 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 99×77×121 | 1.4 | ZS1DF02E1G25 | | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 99×77×121 | 1.4 | ZS1DF02V1G25 | | 25 | 12 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 99×77×121 | 1.4 | ZS1DF02G1G25 | | 11/4” | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 112×86.5×150 | 2.5 | ZS1DF02N2H32 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 112×86.5×150 | 2.5 | ZS1DF02E2H32 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 112×86.5×150 | 2.5 | ZS1DF02V2H32 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 20 | 112×86.5×150 | 2.7 | ZS1DF02N1H32 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 112×86.5×150 | 2.7 | ZS1DF02E1H32 | | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 112×86.5×150 | 2.7 | ZS1DF02V1H32 | | 11/2” | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 123×94×160 | 2.9 | ZS1DF02N2J40 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 123×94×160 | 2.9 | ZS1DF02E2J40 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 123×94×160 | 2.9 | ZS1DF02V2J40 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 123×94×160 | 3.2 | ZS1DF02N1J40 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 123×94×160 | 3.2 | ZS1DF02E1J40 | | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 123×94×160 | 3.2 | ZS1DF02V1J40 | | 2” | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 168×123×183 | 5.2 | ZS1DF02N2K50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 168×123×183 | 5.2 | ZS1DF02E2K50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 168×123×183 | 5.2 | ZS1DF02V2K50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 168×123×183 | 5.4 | ZS1DF02N1K50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 168×123×183 | 5.4 | ZS1DF02E1K50 | | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 168×123×183 | 5.4 | ZS1DF02V1K50 |
